Microsoft Teams integration

Microsoft Teams is a collaboration platform that integrates with Office 365.

There are two ways to build interactions between Microsoft Teams and Windmill: run code on Windmill by a Microsoft Teams command or use the Microsoft Teams API directly from Windmill. In this guide, we'll cover both approaches.

Action on Windmill from MicrosoftTeams​

The goal here is to be able to invoke a Windmill Script from Microsoft Teams, by using /windmill command.


First, you need to be a workspace admin. Then you should go to Workspace Settings Page and select the "Slack / Teams" tab. On there, click "Connect to Microsoft Teams".

Self-hosted

The Microsoft Teams integration is done through OAuth. On self-hosted instances, integrating an OAuth API will require Setup OAuth and SSO.

Note that you can connect multiple Windmill workspaces to the same Teams bot. Only one Windmill workspace can accept the /windmill commands from a given Teams "Team".

Using commands on Teams​

Once you connected your workspace to a Teams Team, you can either select an existing script or flow to handle the /windmill command, or create a new one by clicking the "Create a script to handle teams command" button.

You will be navigated to the Script editor. Give your script a name (e.g. teams_command_handler), a short summary (e.g. "Teams command handler"). You'll get to this template:

import * as wmill from "windmill-client"

export async function main(
  activity_id: string,
  command: string,
  from_name: string,
  team_id: string,
  teams_message: any
) {
  // Your business logic
  const res = "task completed successfully!"

  // (optional) Send update to Teams channel about completion of job
  await wmill.TeamsService.sendMessageToConversation(
    {
      requestBody: {
        conversation_id: activity_id,
        success: true,
        text: `Hi, ${from_name}, command: ${command} ran successfully with the following result: ${res}`
      }
    }
  )
}

After the Script is deployed, navigate back to the

Teams settings

Choose the "Script" option for adding a command handler and select your newly created Script.

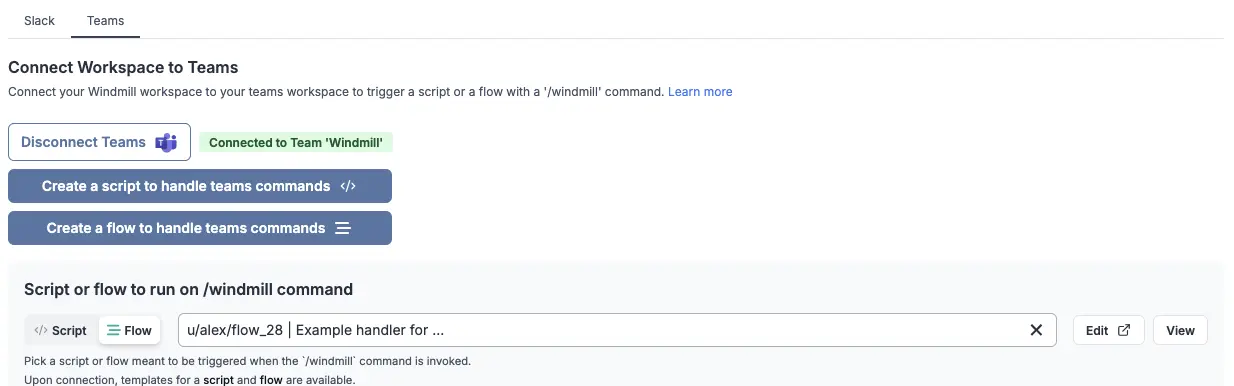

Connected settings

Congratulations! You've just created a Teams command handler. Now you can use the /windmill command in your Teams workspace to trigger the Script.

In addition to activity_id, the script/flow can use the following parameters, simply by having them as inputs with the proper name:

# the ID of the activity in the Teams conversation
activity_id

# the command that was triggered
command

# the name of the user who triggered the command
from_name

# Microsoft Teams Team ID
team_id

# the original payload from the Teams backend
teams_message

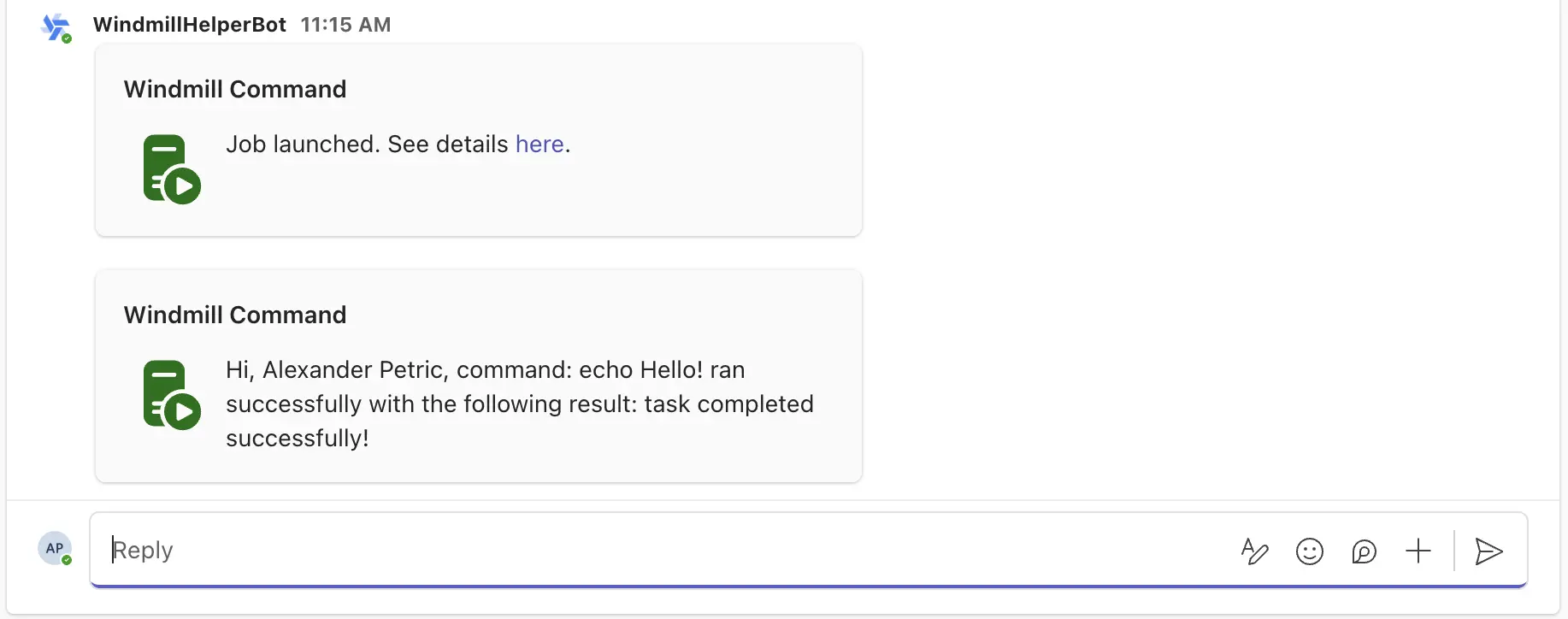

Use the Windmill command

You won't be able to have Teams interact with your resources and variables before adding them to the teams group that was automatically created by Windmill after you set up your Teams workspace on Windmill.

How to let Teams use your resources and variables:

To give the permission, go to "Resources" (and "Variables") menu, click on Share, Group and pick teams.

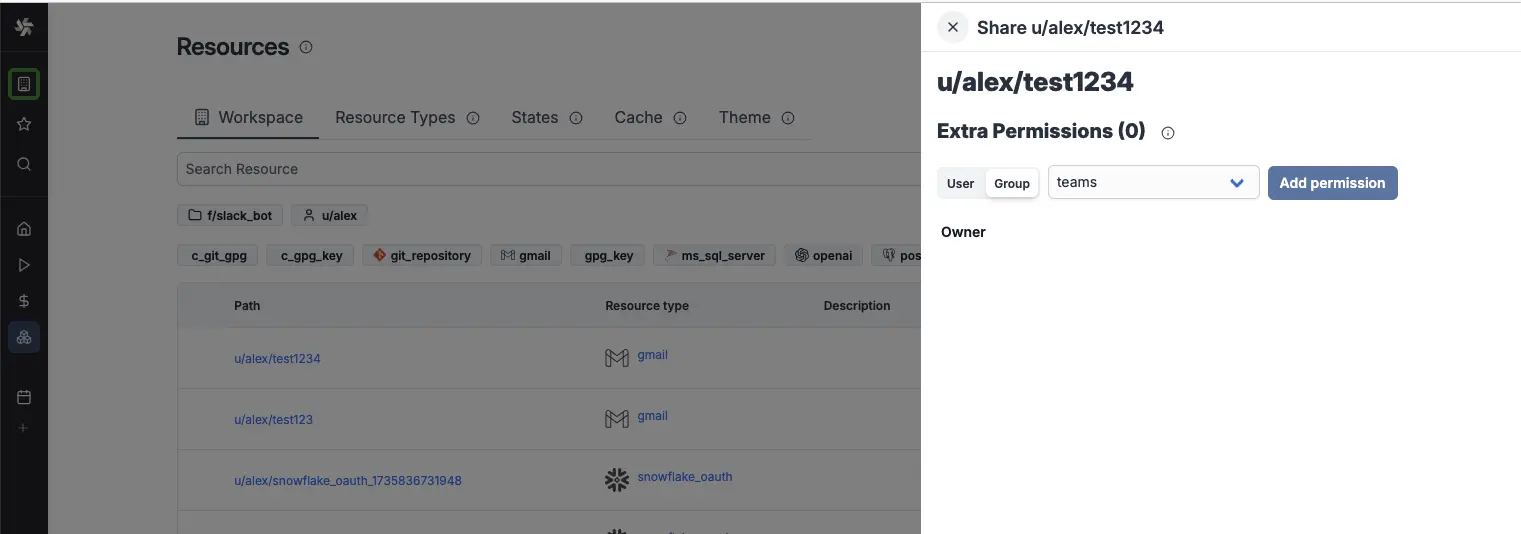

Share to teams group


One simplier way to handle permissions is to host resources and variables on a folder that is part of the group teams.

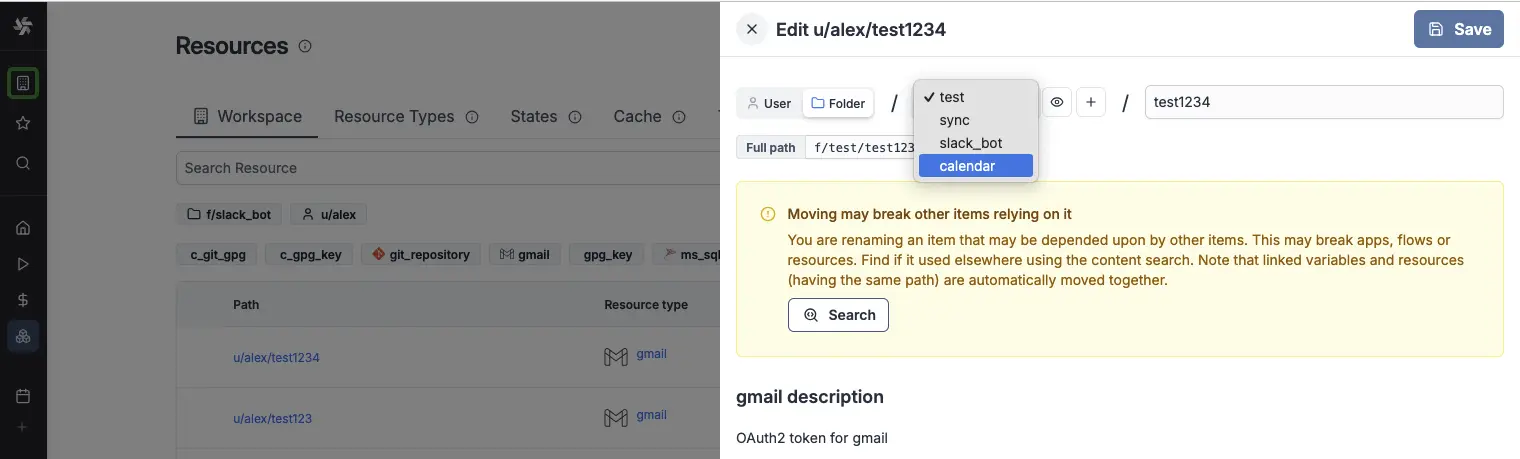

Share variable to folder

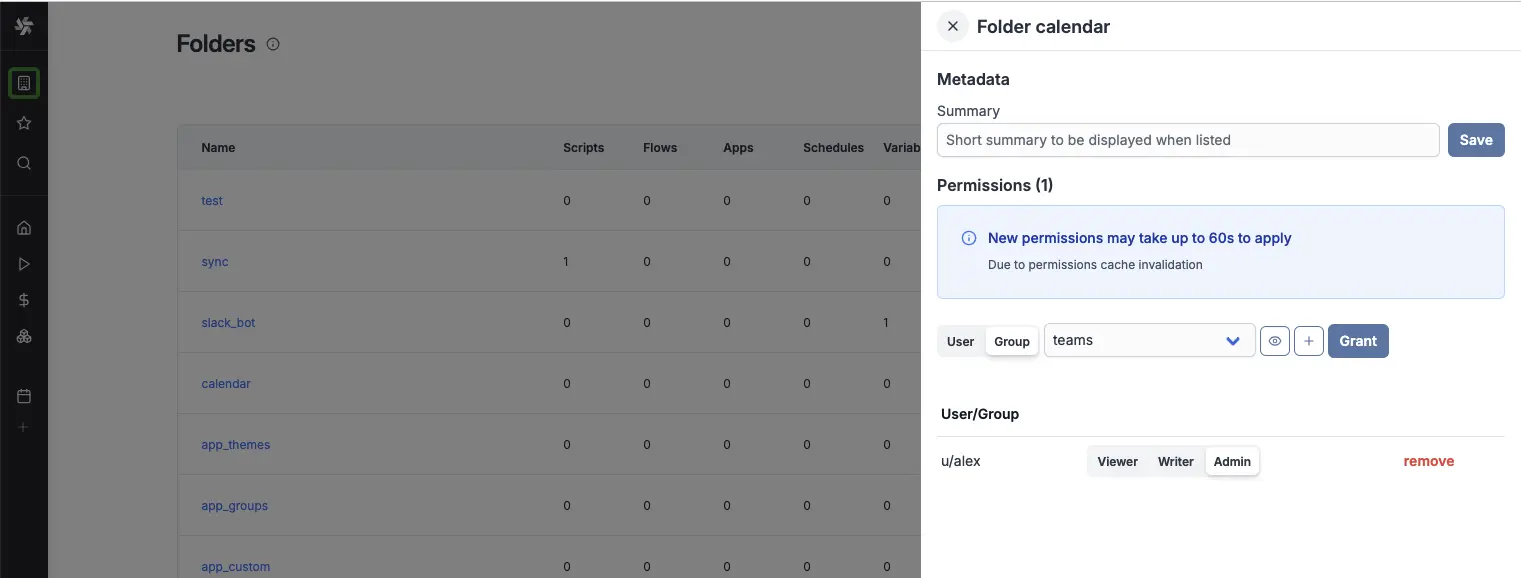

Share folder to group

Handle multiple commands​

You can extend your workspace script to handle complex commands coming from Teams messages. This article shows how to manage multiple commands & human-in-the-loop steps for a slackbot using branches, a text parser and approval steps and can be easily adapted to Teams.

Tutotial - Handler of multiple Slack commands
Create a flow with a parser & branches that will handle multiple Slack commands.

Monitor who ran the command​

You can see who ran the /windmill command by going to the

Runs page

on Windmill. The runs will be permissioned through the g/teams global group.

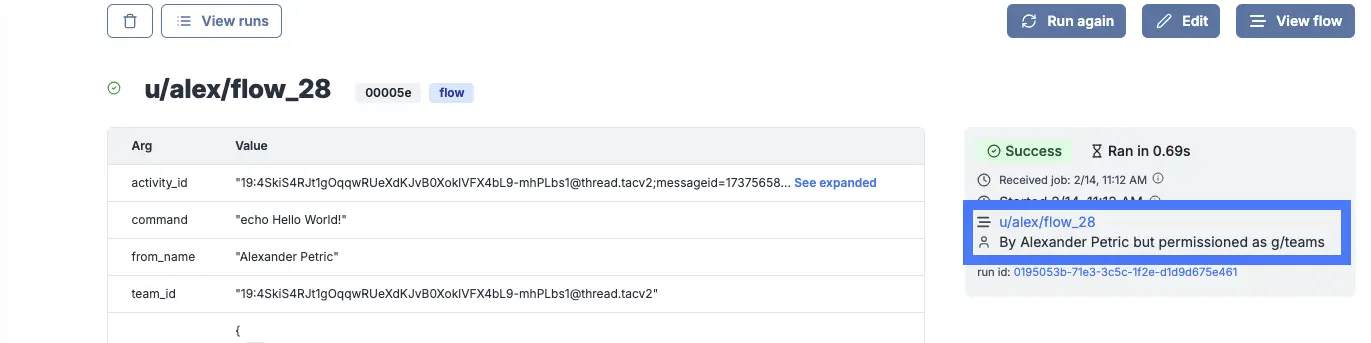

Run info

One of the parameters passed to the script is the "from_name" parameter, which is the name of the user who triggered the command. To process further teams specific details from the command, you can use the "teams_message" parameter.

## Example of teams_message payload
{
  "id": "1739549535827",
  "from": {
    "id": "29:152-adq1512TRGdQmxTqdgnfTA",
    "name": "Alexander Petric"
  },
  "text": "<at>WindmillHelperBot</at>. /windmill echo Hello World!",
  "type": "message",
  "locale": "en-US",
  "entities": [
    {
      "text": "<at>WindmillHelperBot</at>",
      "type": "mention",
      "mentioned": {
        "id": "28:0eba9472-83d1-429e-ba2c-1c2993dda84d",
        "name": "WindmillHelperBot"
      }
    },
    {
      "type": "clientInfo",
      "locale": "en-US",
      "country": "US",
      "platform": "Mac",
      "timezone": "America/New_York"
    }
  ],
  "recipient": {
    "id": "28:0eba9472-83d1-429e-ba2c-1c2993dda84d",
    "name": "WindmillHelperBot"
  },
  "timestamp": "2025-02-14T16:12:15.857639Z",
  "serviceUrl": "https://smba.trafficmanager.net/amer/508f04d5-b0de-4661-b035-b90bb6911ce7/",
  "attachments": [
    {
      "content": "<p><span itemtype=\"http://schema.skype.com/Mention\" itemscope=\"\" itemid=\"0\">WindmillHelperBot</span>. /windmill echo Hello World!</p>"
    }
  ],
  "channelData": {
    "team": {
      "id": "19:4SkiS4RJt1gOqqwRUeYdKJvB0XoklVFX4bL9-mhPLbs1@thread.tacv2"
    },
    "tenant": {
      "id": "508f04d5-b0de-4661-b035-b90bb6911ce7"
    },
    "channel": {
      "id": "19:4SkiS4RJt1gOqqwRUeXdKJvB0XoklVFX4bL9-mhPLbs1@thread.tacv2"
    },
    "teamsTeamId": "19:4SkiS4RJt1gOqqwRUeXdKJvB0XoklVFX4bL9-mhPLbs1@thread.tacv2"
  },
  "conversation": {
    "id": "19:4SkiS4RJt1gOqqwRUeXdKJvB0XoklVFX4bL9-mhPLbs1@thread.tacv2;messageid=1737565847488"
  }
}

Teams approval steps​

Approval steps are a way to suspend a flow until specific event(s) are received, such as approvals or cancellations. You can use them to handle approvals from Microsoft Teams.

The Windmill TypeScript client exposes helper functions to request approvals on Microsoft Teams. There are two types of approvals:

  1. Interactive approval: A Teams message that can be approved or rejected directly from Teams without having to go back to the Windmill UI
  2. Basic approval: A simple link that will open the approval page in the Windmill UI in your browser

The following hub scripts can be used:

If you define a form on the approval step, the form will be displayed in the Teams message as a modal.

Approval form teams

Both of these scripts are using the Windmill client helper function:

await wmill.requestInteractiveTeamsApproval({
    teamName: "Windmill",
    channelName: "General",
    message: "Please approve this request",
    approver: "approver123",
    defaultArgsJson: { key1: "value1", key2: 42 },
    dynamicEnumsJson: { foo: ["choice1", "choice2"], bar: ["optionA", "optionB"] },
});

Where dynamic_enums can be used to dynamically set the options of enum form arguments and default_args can be used to dynamically set the default values of form arguments.

If multiple approvals are required, you can use the client helper directly and send approval requests to different channels:

import * as wmill from "windmill-client"

export async function main() {
  // Send approval request to team A
  await wmill.requestInteractiveTeamsApproval({
    teamName: "Team A",
    channelName: "General",
    message: "Please approve this request"
  })

  // Send approval request to team B
  await wmill.requestInteractiveTeamsApproval({
    teamName: "Team B",
    channelName: "General",
    message: "Please approve this request"
  })
}

For more details on approval steps and their features, check out the Approval steps documentation.

Suspend & Approval / Prompts
Suspend a flow until specific event(s) are received, such as approvals or cancellations.

Action on Teams from Windmill​

Write to Teams from Windmill​

The second way to make Teams and Windmill interact is through scripts triggered from Windmill to the Teams API. In other words, our goal here is to allow Windmill Scripts acting on Teams on your behalf.

Let's navigate to the Resources page and click "Add a resource/API".

info

You can read more about Resources in the documentation here.

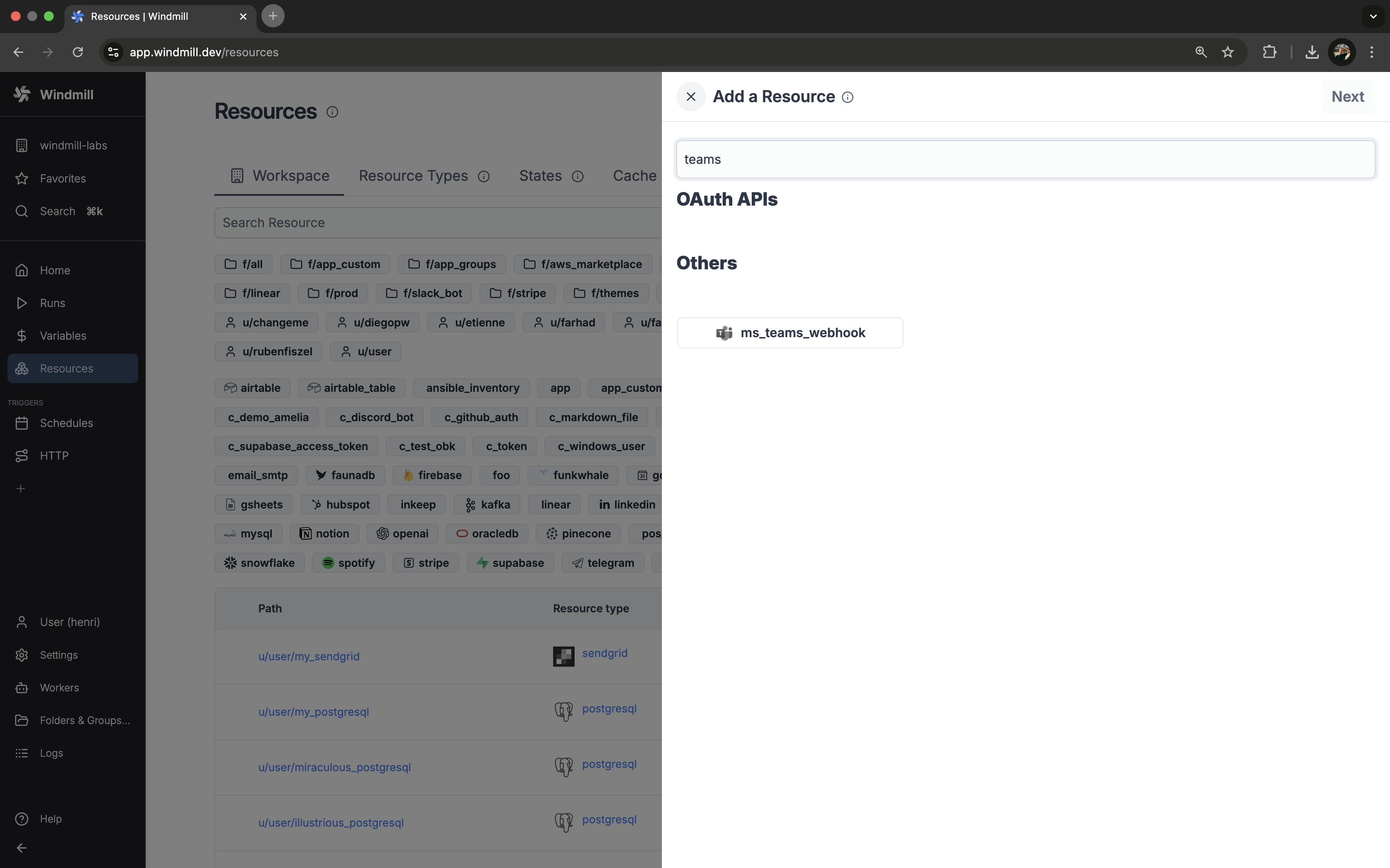

Create Teams resource

Select the ms_teams_webhook Resource Type from the resources list and add a webhook_url (see Teams docs for details on how to create a webhook).

You can then use the resource in a script, like this script found on WindmillHub that "Sends a message to MS Teams channel via webhook":

import { IncomingWebhook } from "npm:ms-teams-webhook@2.0.2";

// See below for an example card you can pass in

type MsTeamsWebhook = {
  webhook_url: string;
};
export async function main(
  ms_teams_webhook: MsTeamsWebhook,
  messageCard: object,
) {
  const webhook = new IncomingWebhook(ms_teams_webhook.webhook_url);
  const ret = await webhook.send(messageCard);
  return ret;
}

const example_card = {
  "@type": "MessageCard",
  "@context": "https://schema.org/extensions",
  summary: "This is a test summary",
  themeColor: "0078D7",
  title: "This is a test title",
  sections: [
    {
      activityTitle: "Windmill Webhook",
      activitySubtitle: "2023-05-25 17:57:55",
      activityImage:
        "https://connectorsdemo.azurewebsites.net/images/MSC12_Oscar_002.jpg",
      text: "This is a test text",
    },
  ],
};

Error handlers​

Microsoft Teams is an efficient way to be notified of errors on a Windmill run, whole workspace or instance. Windmill provides an integration for error / success / recovery handling on Microsoft Teams.

More details on Error handling page.

Critical alerts​

Microsoft Teams can be used to receive critical alerts from Windmill. This feature is available in the Enterprise Edition.

Critical alerts are generated under the following conditions:

To set up critical alerts to Microsoft Teams:

  1. Configure SMTP in the instance settings
  2. Connect your instance to Microsoft Teams in the instance settings
  3. Specify the Teams channel where alerts should be sent

You can also set up worker group-specific alerts to receive notifications when the number of running workers in a group falls below a specified threshold. This can be configured in the worker group config.

note

Instance-wide critical alerts are only visible to users with the superadmin or devops roles. For workspace-specific alerts, users need to have admin privilege over that workspace.

Critical alerts
Get a notification for critical events such as everytime a job is re-run after a crash.
